Transport-only unit based on the award-winning LUMIN S1
Transport-only unit based on the award-winning LUMIN S1
After years of requests from existing high-end DAC owners, the LUMIN
team have taken the finest components from the flagship S1 model and
developed them specifically for digital processing and output. Using a
new dedicated LUMIN U1 processor adds upsampling and downsampling for
every supported format – all the way from 44.1kHz to DSD128 and DXD –
providing maximum DAC compatibility and optimization.
As well as supporting DSD output over SPDIF (via DoP), LUMIN U1 also adds DSD128 digital output via 2 new USB ports.
| Fiziskie parametri | |
|---|---|
| Platums | 350 mm |
| Dziļums | 345 mm |
| Augstums | 60 mm |
| Korpusa materiāls | Lumin (solid aluminium chassis) |
| Krāsa | Raw brushed aluminium. (Black anodised aluminium finish is available as a special order item. Please contact for costs and lead time.) |
| Svars | 8 Kg |
| Pieslēgumi | |
| Signāla pieslēgumi | Gigabit Ethernet Network (1000BASE-T), 2x USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only) |

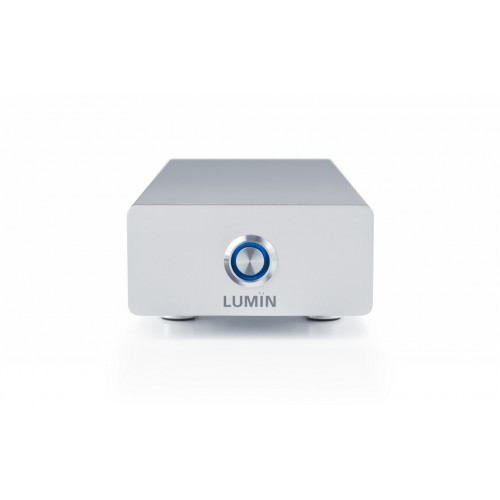

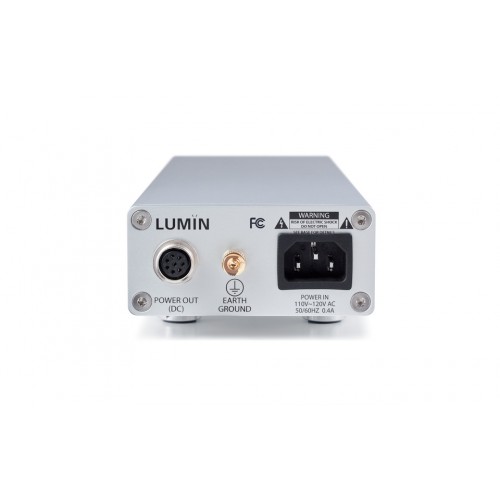

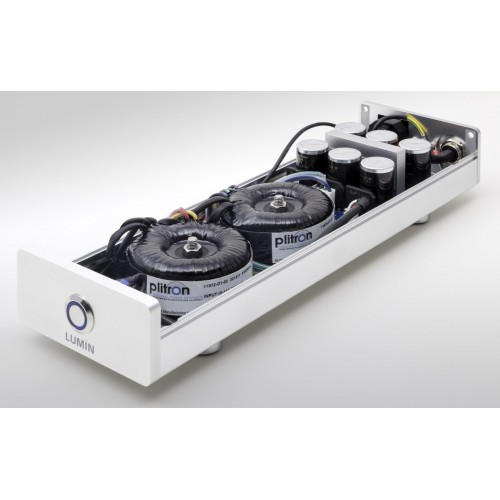

| Elektrības konektori | Dual-toroidal PSU 100mm (W), 295mm (D), 55mm (H), 2kg |

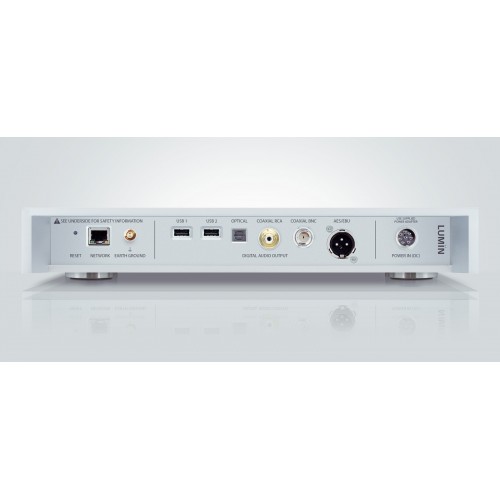

| Izejas pieslēgumi | 2x USB DSD128, 5.6MHz, 1bit, Stereo, PCM 44.1khz–384kHz, 16–32bit/ Optical, Coaxial RCA, Coaxial BNC & AES/EBU DSD (DoP, DSD over PCM) 2.8MHz, 1bit PCM 44.1kHz–192kHz, 16–24bit |
| Vadības un programmēšana | |
| Vadības iespējas | Apple iOS devices. iOS 5.0 or later required. Android tablets (7” screen or larger). Android 4.0 (Ice Cream Sandwich) or later required. |
